Asian drilling-intensive projects named finalists for IPTC award

Posted on 09 February 2012

Shell Brunei’s $500 million offshore redevelopment of the 80-year-old Seria field centered on 28 “fishhook” wells drilled in an integrated waterflood project.

By Mike Killalea, editor & publisher

Two landmark Asian development projects with heavy drilling emphasis were recognized as finalists for the Excellence in Project Integration Award, bestowed at the 2011 International Petroleum Technology Conference (IPTC), 7-9 February 2012 in Bangkok. The event had been postponed from the previous November. IADC is an Endorsing Organization for IPTC.

The two projects were Shell Brunei’s innovative drilling-centered program to re-invigorate the 80-year-old Seria field in Brunei and ExxonMobil’s record-setting Sakhalin drilling project on the Odoptu field. The award winner was Shell Brazil’s deepwater Parque das Conchas development, while TOTAL E&P’s Yemen LNG project was a fourth finalist.

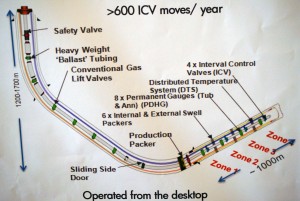

Profile of typical Seria fishhook well.

Seria: Fishhook for an oily catch

The Seria redevelopment represented a capital investment of more than $500 million, with drilling accounting for 80%, said project lead Adedayo Dada of Shell. The idea was to create an integrated waterflood to enhance production.

Challenges were complex geology, including multiple un-appraised faults, poorly understood fluid-fill model, and marginal economics, if a conventional offshore platform were to be used.

Two alternatives – the conventional offshore platform and an artificial island – were dismissed, largely due to the economics.

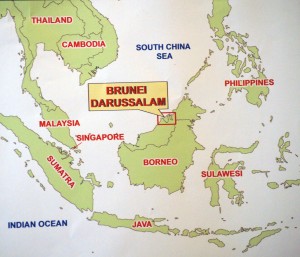

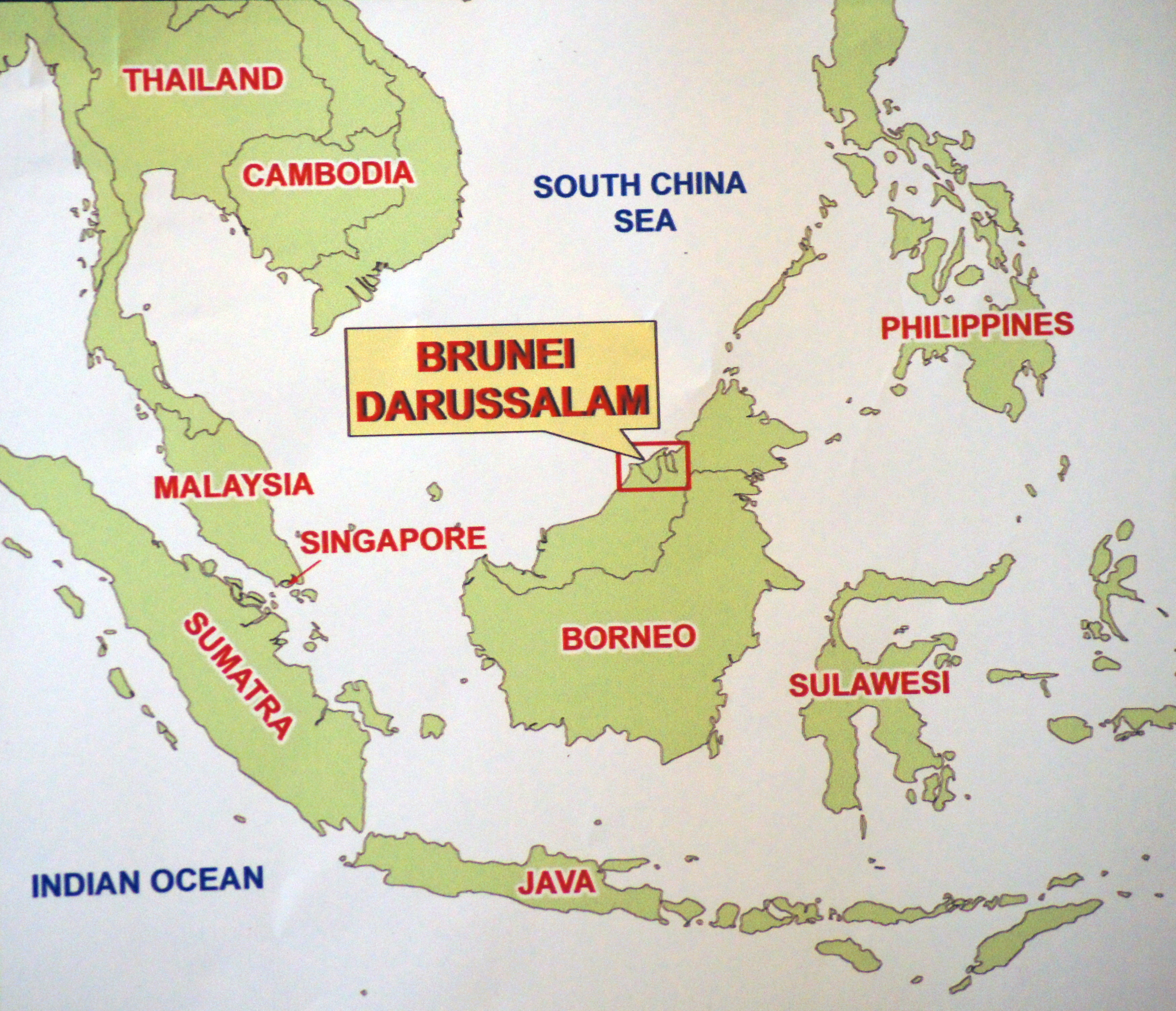

The onshore Seraia oilfield in Brunei Darussalam has produced more than 1.1 Bbillion bbls of bbl oil since 1929.

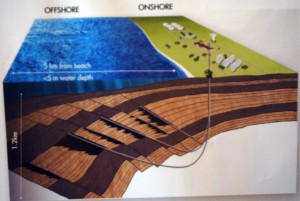

Instead, Shell opted to drill “fishhook” wells beneath the structure that curve back up toward the surface and into the formations. The wells were drilled from shore and reached some 5 km from shore in water depths less than 5 meters. Maximum well depth at the bottom of the “hook” ranged from 1,200 meters to 1,700 meters, Mr Dada said.

While the fishhook wells offered the best CAPEX and least environmental impact of the three options, they posed a high technical risk, Mr Dada said. Further, Shell’s technical expertise for these operations was somewhat wanting.

In all, 28 fishhook wells were drilled, each with a 110º-140º tangent section. While the first well cost $30 million, current costs have fallen to between $7 million  and $8 million per well. Additionally, the rig has won accolades for HSE performance. It was named Shell’s Land Rig of the Year for 2008, 2009 and 2011. (Mr Dada confided that a cut finger – not a finger cut off – cost the rig the 2010 prize.)

The project increased production to a 30-year high and saved more than $100 million compared with the offshore platform scenario.

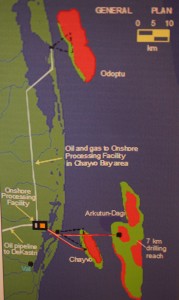

The Odoptu field is one of three in ExxonMobil’s Sakhalin-1 development in far eastern Siberia. Odoptu’s ERD wells were among the seven longest-reach in the world, including OP-11, which at 12,345-meter measured depth and a step-out of 11,479 meters, holds the world record for longest ERD well. The wells were drilled with the Yastreb rig, which was built for the earlier Chayvo development, then upgraded and relocated to Odoptu.

Extending a world reach in Sakhalin

ExxonMobil’s Odoptu First Stage Production project was the second step in developing the three Sakhalin-1 fields, which also include Arkutun-Dagi and the first development, Chayvo. Three of the extreme Odoptu extended-reach drilling (ERD) wells are among the seven longest-reach in the world. Notably, OP-11, which at 12,345-meter measured depth and a step-out of 11,479 meters, holds the world record for longest ERD well. The wells were drilled with the Yastreb rig, which was built for the earlier Chayvo development, then upgraded and relocated to Odoptu.

The prize was vast. Recoverable reserves for these fields, discovered in the 1970s, total 2.3 billion bbls of oil and 17.1 Tcf of gas, said Sam Roxburgh, project executive.

Odoptu’s daunting challenges included an extreme sub-arctic climate, including pack ice for six months of the year; an environmentally sensitive area, with attendant strict regulatory guidelines; and very limited infrastructure. In addition, the region is highly earthquake-prone and the subsurface features a complex geology and a reservoir for which engineers entertained doubtful knowledge.

In the midst of the development, what was described as a 100-year blizzard struck in January 2010, damaging work tents, as well as facilities under construction. Photos of unfinished, frozen facilities shared by Mr Roxburgh evoke an unwished-for winter wonderland. Nonetheless, no one was injured at the site. In fact, he said the project team helped in rescue and humanitarian efforts in the local community in the storm’s aftermath.

In the first stage, nine ERD wells were drilled beneath the Sea of Okhotsk. In addition, onshore processing facilities were constructed.

The record-setting OP-11 well was drilled and completed in just 60 days, suffering less than 1% nonproductive time.

In addition to setting a satisfying world drilling record, the project was completed in time and under budget. During the 16-month project, not a single lost-time incident was recorded. The project won the ExxonMobil Development Company’s President SSH&E award for three consecutive years. The project, which kicked off on 15 September 2010, added 11 million bbls of oil/year.

Credits: Seria illustrations courtesy of Shell Brunei and IPTC 2011. Odoptu illustrations courtesy of ExxonMobil Development and IPTC 2011.
