Drilling Ahead: Cashing in on the enviro agenda, Greenbacks for green drilling?

Posted on 12 November 2009

By Mike Killalea, editor & publisher

Even as environmental agendas delay well permitting and cause other headaches, new opportunities may loom for “green” drilling. Two areas in particular present themselves – CO2 geologic storage and geothermal drilling.

As Pritchard Capital somewhat breathlessly phrased it in a recent e-missive, “Geothermal is hot and getting hotter.” As previously reported herein, $90 million of US funding was designated for geothermal technologies. The funding is for work on conventional geothermal resources and for “enhanced” geothermal.

Longtime DC readers may recall “enhanced” geothermal from 1991, when Los Alamos invited IADC to organize a drillers’ delegation to tour the New Mexico facility and learn about “hot dry rocks” – now reborn with the rather more marketable moniker “enhanced” geothermal. In short, an injector and a producer are drilled into non-permeable, heat-bearing strata. The rock is fractured, tepid water pumped in and hot water produced to generate electricity.

A $500 million-plus annual bonanza in drilling and well services predicted in ’91 has yet to emerge. Even today, backed by fed funds, progress is shaky. One recent, well-publicized DOE-funded project in California’s Geysers by AltaRock Energy was suspended in early September after failures re-entering and deepening the first well. Each of AltaRock’s three redrill attempts ended in failure, the well collapsing and trapping the BHA. The company suggested several culprits – long-term injection, difficult geology, and the well rework itself. AltaRock would not comment to DC beyond the information on its website.

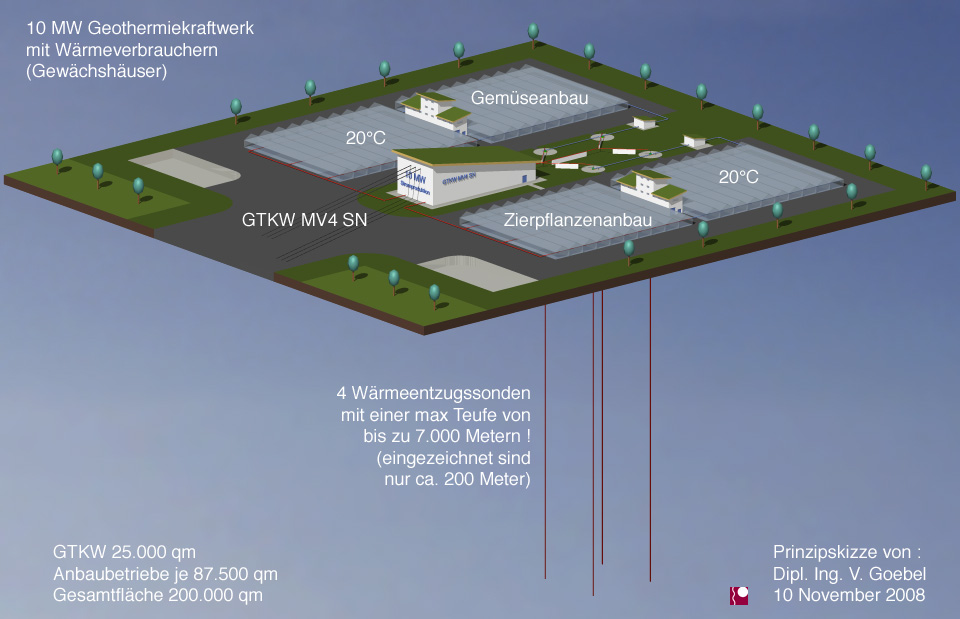

Steamy enthusiasm for geothermal exists outside the US. Two days before writing this column, IADC received a query for a deep-drilling land rig for a four-well geothermal project in northeastern Germany. According to Mr V Goebel, the local adviser, the site is near Schwerin. Related drawings and the e-mail address for Mr Goebel follow this article. “Our timeline becomes real as soon as we find the required drilling contract,” he wrote.

GTPP_Schwerin_MV4_Ing_Goebel_Germany

CO2: A LOT OF GAS?

The other prospective green gusher for well services is CO2 geologic storage. Suggestions for CO2 disposal modes abound. Our industry has been injecting the stuff downhole in tertiary oil-recovery programs for decades. Kinder Morgan CO2 alone delivers some 1.3 billion cu ft through 1,300 miles of pipelines. Much of this is produced from domes in the western US, ironic in an age of CO2 terror.

Geologic storage also encompasses injection into coal seams and deep saline formations. (CO2 semanticists quail at the term “aquifer injection,” stressing that only formations with non-potable reserves are targeted – more than 10,000 mg/liter total dissolved salts.) “Saline formations offer great potential CO2 storage capacity,” states the US Environmental Protection Agency.

CO2 is catching the attention of the industry. DC recently chatted with George Koperna of Advanced Resources International, co-chairman of an SPE CO2 conference in November. “We’re talking about a potential for widespread development,” Mr Koperna told us. Details are available in video and text formats here.

EPA wants to be doubly – triply! – sure that nary a molecule of dreaded CO2 escapes its subterranean tomb. Hence, standards for wells and reservoirs will be stringent, according to Mr Koperna. (One could be forgiven for thinking we were dealing with plutonium or PCBs.) “You have to prove it’s going to stay there,” Mr Koperna said.

Still, even though all CO2 must be injected below the lowest drinking water aquifer, most of these wells don’t TD much below 3,500 ft or so – shallow depths.

Several geologic sequestration projects are ongoing, both via miscible recovery and geologic sequestration, including StatoilHydro’s Sleipner platform and the In Salah gas project in Algeria. A demonstration project of CO2 injection for both tertiary oil recovery and CO2 storage is the Weyburn Enhanced Oil Recovery Project.

In early October, US Energy Secretary Steven Chu just announced $1.4 billion-with-a-”B” for 12 projects to capture and store CO2, including saline injection. C6 Resources will capture, transport and inject a million tons of CO2 annually into a saline formation two miles underground – not so shallow, a $3 million DOE grant. Other recipients planning underground disposal include Praxair Inc, Shell Chemical Capital, ConocoPhillips and the University of Utah.

Finally, DOE announced that a partner has successfully injected 1,000 metric tons of carbon dioxide (CO2) into the Mount Simon Sandstone, a deep saline formation that is widespread across much of the Midwest. Depths were 3,250 ft-3,550 ft.

While our industry finds itself at odds with much on the environmental agenda, silver linings might still exist. Perhaps these are two.

Click here for the EPA’s presentation, Geological Sequestration of Carbon Dioxide.

You can reach Mike Killalea at mike.killalea@iadc.org.

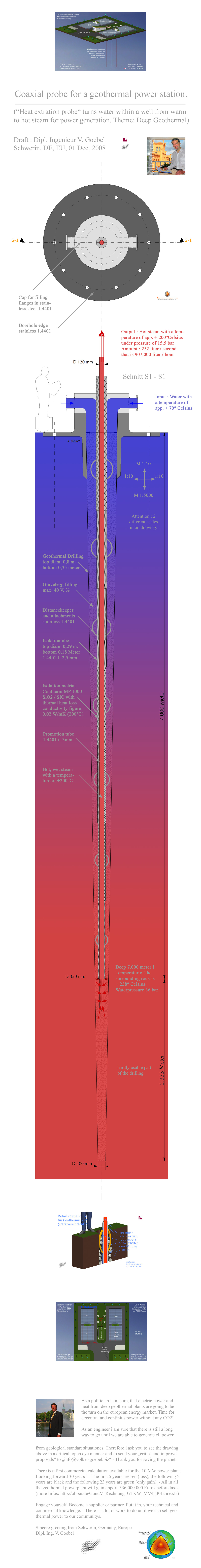

Coaxial_heat_extraction_sonde_Ing_V_Goebel

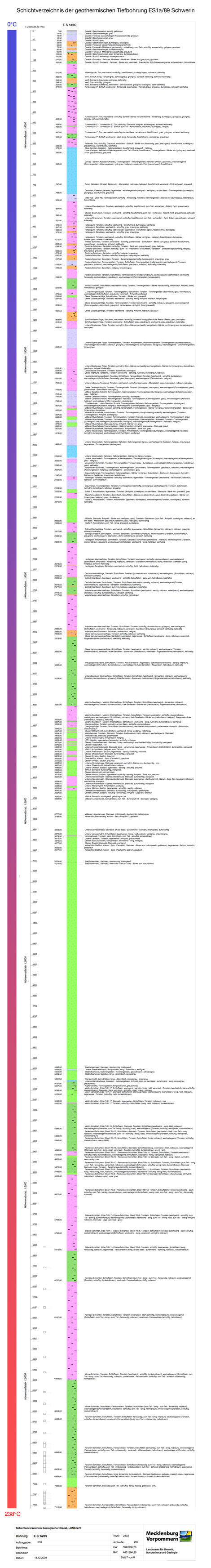

ES1a_89_Bohrung_Schwerin

2 Comments For This Post

  1. Dipl. Ing. Volker Goebel Says:

    Dear US Drillers of the world

    We have an additional saltcaverne in that system now. The surface of the borehole is just 14.652,81 m2 Proof (0,4 + 0,1) x 3,14 x 9.333 = 14.652,81 sqm. That is never enough heat exchanging surface for steam production.

    The additional salt caverne (see geology between 3.406 and 4.995 meter) is not
    shown in the drawing above. Her 267.778 m2 is enough for geothermal power production. Look onto the 1 year later drawings on the website startpage.

    The drawings are more then one year old. Check the actual drawings and calculations. The scientific proof is written in german too. – Sorry therefore.
    German politics and society wants to get rid of CO2 too. How to seperate?

    If it is the coaxial heat extraction probe call me. If you want to store deep you might call me to. Studied engineer, master of metal industry and learnd sheet metal worker. Project developer, politican, father.

    We got quotes from Nabors and Baker Hughes now. Including shipping, casing,
    underreamer an all that salt, water and mud stuff. Get your innovations developed in Germany.

    Check >>> http://www.volker-goebel.biz >>>

    We have the project, the technology and a 20 years guaranteed income situation by law. The 10 MW el power plant generates a gain of 0,5 Bil. Euros per year. Earn your money here or steal that design.

    send me an email >>> info@volker-goebel.biz

    We are still looking for drilling offers for following diameters 1,12 / 9,14 / 0,2 Meters ! Deaphs 9.333 Meters. – We offer shares in the new company. Maximum 50%. – It is a 73,6 Mio. Euro Invest.

    Sincerely yours

    Volker Goebel

  2. Dipl. Ing. Volker Goebel Says:

    Dear drilling companies

    Don´t steal the technology. It is not as easy as it might look.
    Let me do a consulting job, explaining you the GTKW System
    including the long injection probe/sonde. It´s my technology.

    Sincerely yours

    Volker Goebel

    .
