‘Rich-burn’ engines look to power land rigs with reduced emissions

Posted on 17 September 2012

Low cost of  natural gas versus diesel opens door to alternative engine options

By Tom Countryman, Mark Moss, Fred Stow, Waukesha-Pearce Industries

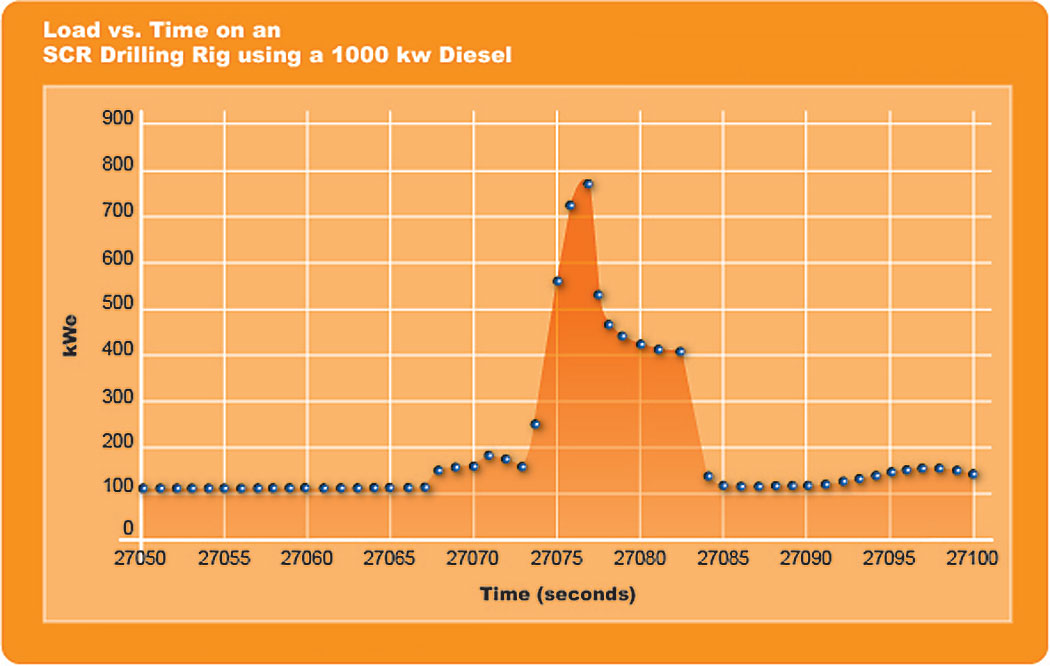

Figure 1 represents a data capture for what appears to be the worst-case loading from the data provided. Load step is essentially from approximately 180 kWe, which is 18% of the engine’s rating, to 800 kWe, 80% of the rating. This represents a total step of 62%.

Horizontal drilling and hydraulic fracturing have unlocked record supplies of natural gas in North America, pushing prices to a 10-year low and cutting profits for gas producers. The oversupply has prompted these producers to actively promote the fuel as a low-cost, cleaner-burning means of fueling vehicles and other equipment.

More energy companies are now looking to natural gas as a means of powering their drilling rigs. Some are being fueled by “field gas” and others by trucked-in LNG. Some industry players believe that  this can help can companies reduce fuel bills and cut greenhouse gas emissions.

This article looks at “rich-burn” engines used with a three-way catalyst, also known as non-selective catalyst reduction (NSCR) technology, compared with “lean-burn” engines, focusing on the engines’ load response, fuel tolerance, emissions and operating costs.

Load response

Modern AC drilling rigs are either SCR-controlled (silicon controlled rectifier) or VFD-controlled (variable frequency drive). Drilling rig loads are trending from earlier SCR drives, with DC traction motors, to the latest VFD drives with AC motors. VFD has better control, higher efficiency and more load stability to the operation of the drawworks, rotary drive and mud pump drive. Both have high load transient swings, requiring the engine and generator to respond quickly.

Most drilling rigs have diesel engines: three sets each for 18,000-ft land rigs and four sets for 30,000-ft land rigs. Each diesel engine is rated around 1,500 hp, 1,200 rpm, 1,050 kWe. The generator is rated at 1,950 kva. The generator is oversized due to the lower power factor of rig loads, typically 0.6 to 0.7 pf. The driller normally runs all three units in parallel.

The loading profile swings are between a base load and a maximum load. The majority of the time, it is at a steady base load of 200 kW per unit. Worst-case transient loads of 800 kW per unit are during deep drilling, hoisting and tripping out of the well. Highest loads occur during back-reaming; when hoisting, the mud pump load and top drive are in active operation at the same time. Mud pump loads add to the base loading during normal drilling.

Therefore, for the worst-case scenario, with three units on the line, the engines/generators need to pick up a total load from 600 kW to 2,400 kW, with a ramp time of about 4 to 5 sec. The total source kW capacity connected is 3150 kW with diesel engines. SCR and VFD drives have a maximum tolerance on source voltage and frequency excursions of 10% for voltage and 5% for frequency. Therefore, proper sizing of the engine and generator is critical.

A gas engine drive has to be oversized to minimize frequency dip. Due to the time delay difference in fuel delivery, the gas engine will respond slower to load transients than a diesel engine. Information on the GE Waukesha 7044GSI engine indicates it can pick up a 0% to 60% load in 7 sec with a 5 hz (8%) frequency dip, and a 60% to 100% load in 5 sec with a 3 hz (5%) frequency dip. The rating on the 7044GSI is 1,200 kW (3,600 kW with three units on the line). If we apply the drilling rig load of 600 kW to 2,400 kW, this equates to a load step of 16% to 66%. The load is actually ramped in 4 to 5 sec. There are settable torque and horsepower limiters in the controls of the SCR and VFD drives. Load response curves for the 7044GSI would indicate it is capable of handling this load transient.

The generator is already oversized to minimize the voltage dip, and by using the same Kato drilling generator, we equate voltage response performance to that of the diesel. The Kato generator is the most acceptable generator to the drilling market. VFD drives have lower harmonics and better efficiency, resulting in improved generator performance.

Figure 1 represents a data capture for what appears to be the worst-case loading from the data provided. Some comments regarding this:

• Load step is essentially from approximately 180 kWe (18% of rating) to 800 kWe (80% of rating) for a total step of 62%;

• The load step is much softer than a pure 18% to 80% resistive load step. A resistive load step happens instantaneously, where the step indicated here is over a four-second interval. Four seconds may well be sufficient time for the turbocharger to respond;

• During this load step, the air/fuel ratio controls will not keep up. Therefore, emissions may be much higher than during steady state conditions;

• The load is flat around 100-200 kWe much of the time. At this light of a load, it is not certain how well the air/fuel ratio control will maintain emissions. Some adjustment to programming may be necessary; and

• In reviewing the data information for drilling a single hole, it appears the majority of the time the generators operate at a nearly steady state. Therefore, the majority of the time, there should be good air/fuel ratio control performance.

Fuel tolerance

A rich-burn engine operates with a wide margin for both knock and misfire, allowing a high tolerance for fuel composition. At lower levels of nitrogen oxides (NOx), lean-burn engines operate in an increasingly narrow window, limiting fuel flexibility and making them more sensitive to site conditions. In addition, fuel consumption increases and efficiency decreases as combustion deteriorates due to the high amount of excess air used to lower NOx.

Greenhouse gas emissions: Don’t forget methane

Rich-burn engines, when used with a three-way catalyst can achieve lower NOx, carbon monoxide (CO) and volatile organic compounds (VOC) values.

Lean-burn engines typically are limited to NOx values of about 0.5 g/bhp-hr unless equipped with a selective catalysis system. As NOx permitting requirements approach 0.5 g/bhp-hr and below, rich-burn engines  equipped with NSCRs may be able to operate more cost effectively.

Additionally, although CO2 is the most significant greenhouse gas addressed globally, methane – also a greenhouse gas – has 21 times the effect on the atmosphere. Rich-burn engines emit much less methane than lean-burn engines. The US EPA requires that both CO2 and methane be included in carbon calculations as a carbon dioxide equivalent, CO2e. When methane is factored into this, rich-burn engines may be able to deliver a better greenhouse gas profile.

Formaldehyde is the most significant hazardous air pollutant emitted by engines. Because lean-burn engines operate at lower combustion temperatures, up to 10 times more formaldehyde can be released than with rich-burn engines.

Rich-burn engines also use a lower amount of air in the air/fuel combustion mixture, whereas lean-burn engines put more air into the mixture. For lean-burn engines, this can lower NOx emissions to as low as 0.5 g/bhp-hr. However, other factors of lean-burn engines should be considered:

• Methane slip due to incomplete combustion resulting in higher GHG;

• In general, as an engine is operated leaner, combustion temperature and exhaust temperature drop steadily, increasing formaldehyde formation;

• Cooler exhaust temperatures make methane slip harder to treat; and

• NOx lower than 0.5 g/bhp-hr likely requires selective catalytic reduction for lean-burn engines.

As new rounds of emissions regulations go into effect, the EPA’s new emissions standards for NOx, CO, VOCs and hazardous air pollutants have challenged the natural gas industry to reduce levels of these substances during operation.

Although US federal regulations reduced both allowable NOx and CO emissions by half in 2010, to 1.0 g/bhp-hr NOx and 2.0 g/bhp-hr CO, some states are considering enacting more stringent requirements. For example, states that currently have severe non-attainment status have begun mandating NOx levels of 0.5 g/bhp-hr and lower.

For larger horsepower applications, lean-burn engines offer fuel efficiency, but this must be a trade-off for lower NOx levels.

Operating costs

The greatest expense to operate any engine, in any application, is fuel costs. As noted, pricing for natural gas is presently at a much better position than diesel, so operational costs would be lower for the natural gas-powered engines. Additionally, operational costs associated with the transportation of the diesel fuel to the drilling location should be factored in. It takes approximately 7.6 gallons of diesel to equal one MMBTU of natural gas. Liability costs associated with the increased number of fuel trucks on the road to support the drill site also should be considered.

Although it might not be a direct cost, weather-related conditions could cause delays in fuel deliveries. Further, there are the environmental impacts related to potential diesel fuel spills.

Maintenance costs for natural gas engines are higher due to the nature of the fuel being “dry” and the increased combustions temperatures, but these should be more than offset by the overall savings

Lastly, compared with other brands of spark-ignited engines, the VHP Series Four enhanced engines, operating at lower BMEP, provide longer operational times between oil changes, top-end overhauls and complete overhauls, extending the service life of the engine to provide a higher rate of return for the operational horsepower needs.

Summary

Driven by significant segment forces (low cost of natural gas versus diesel and intense focus on reduced emissions), the drilling industry is faced with the opportunity to make significant improvements and upgrades to existing and new equipment.

VHP and Series Four are trademarks of General Electric Company.
