Trelleborg launches elastomer-to-metal wellhead sealing solution

Trelleborg Sealing Solutions' metal end cap seal can withstand pressures up to 103.4 MPa/15,000-psi. The elastomer sealing element provides leak tightness against sub-optimal tubing surface finishes. The materials are certified to NORSOK, API and Total standards.
Trelleborg Sealing Solutions’ metal-end cap seal can withstand pressures up to 103.4 MPa/15,000 psi. The elastomer sealing element provides leak tightness against sub-optimal tubing surface finishes. The materials are certified to NORSOK, API and Total standards.

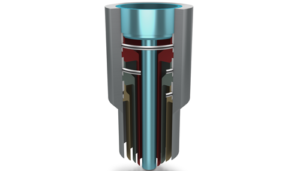

Trelleborg Sealing Solutions has announced the launch of a new metal-end cap seal engineered for high pressure high temperature (HPHT) wellhead, tubing and casing hanger sealing environments, which combines the pressure and extrusion resistance of a metal-to-metal bonded component with the flexibility of an elastomer.

The high-performance elastomer-to-metal bonded sealing elements provide the high level of extrusion resistance necessary for HPHT casing and tubing hanger applications. Combining the range of proprietary XploR rapid gas decompression and sour gas-resistant elastomers with corrosion resistant metal-end caps, Trelleborg Sealing Solutions engineers can design a customized sealing solution to meet specific requirements.

“High-pressure wellhead sealing environments, such as casing strings and tubing hangers, are safety-critical applications requiring a robust and capable sealing product,” Eric Bucci, Trelleborg Sealing Solutions Segment Manager Oil & Gas Americas, said. “The new metal end cap seal that Trelleborg Sealing Solutions has developed uses our proprietary and proven XploR materials, which provide superior explosive decompression resistance, oilfield fluid compatibility and longevity in HPHT environments. These benefits accelerate the performance of our customers, allowing them to operate oil and gas equipment with optimal safety and reliability.”

Sealing in the elastomer-to-metal design solution is achieved by controlled deformation of the elastomer and metal end cap elements during installation and operation. Optimal stress distribution throughout the elastomer body is modeled through finite element analysis to ensure appropriate design standards are applied to each unique application. Extrusion resistance is provided by the specially designed metal-end caps that provide positive metal-to-metal sealing interference with the hardware upon assembly and conform with any potential extrusion gaps under pressure.

The mechanical-end cap seal can withstand pressures up to 103.4 MPa/15,000 psi and temperatures up to +177°C/+350°F in static applications. The seal materials are certified to NORSOK, NACE, API and Total standards.
